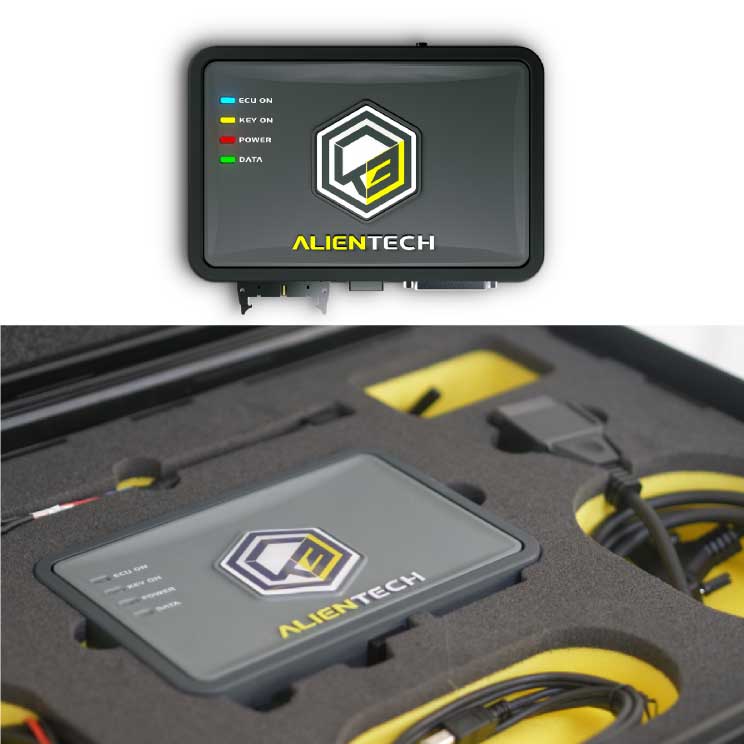

KESS3 Case
Ideal product arrangement, everything is exactly where it needs to be. High security, because your business must never stop.
The design derives from military studies and applications; housings on the upper part that facilitate storage, pressure valve in closing, for air transport; snap closure for maximum safety; stop on the suitcase to avoid taking up space on the counter. KESS3 does not travel alone, not only the instrument, but also all the basic accessories you need to work.
USB cable, needed to interface with the KESS3 instrument through the PC.
The new generation OBDÂ cable that integrates all the communication lines used by the various car manufacturers; this cable, therefore, replaces various wirings that were used by KESSv2; more specifically, it is also able to communicate with Honda, Volvo, Lotus and Toyota.
1400SWALIM power supply, capable of providing sufficient current and voltage to communicate with the electronic control units, in a stable and safe way.
144300TALI cable, to power the instrument using a bench power supply (the power supply, on the other hand, is sold separately).
144300KBNCÂ cable to communicate with the control units directly on the bench.
144300KTERÂ pack which contains all the cables useful for connection in BENCH or BOOT mode. (extender).
144300T104Â rainbow cable IDC 26-10 consisting of 10 wires, used to connect directly to the electronic board of the control unit.
144300T105Â rainbow cable IDC 26-16 composed of 16 wires, used to connect directly to the electronic board of the control unit.
144300T106Â rainbow cable IDC 26-26 consisting of 26 wires, used to connect directly to the electronic board of the control unit.
KESS3 offers three operating modes in a single device: OBD, Bench, and Boot.
     ⦿ OBD Mode – Easily access all ECU data through the diagnostic port.
     ⦿ Bench Mode – Connect directly to the ECU for full data access without opening it.
     ⦿ Boot Mode – Gain complete access to all system data areas, allowing you to read, write, and clone.
12-month subscription (OBD & Bench) for updates relating to new developments and additional vehicles
A support network that is second to none who are always willing to help – not just with software instructions!
The vehicle tuning process is simple. You use the Kess V3 slave tool with a compatible laptop to read the existing map data from the vehicle, upload the file to our dealer portal and wait for the modified file to be sent to you then write the file to the vehicle. File turnaround time is normally 20-30 minutes.
